DAIKIN VRV Features & Benefits
6, 8, 12, 14 & 16, 18, 20 Ton, 208 ~ 230 -460V / 3-phase power, for commercial applications.
Individual zones of up to 41 zones from one system.
Choice
Advanced zoning
Independent control

VFD/Capacity control
Capacity is modulated automatically by varying refrigerant volume to deliver the precise amount of heating or cooling.
Each zone independently controls its capacity by precise PID control to within + / - 1º F in conjunction with electronic
expansion valve equipped indoor units. Variable speed compressor and fan motors on the condensing unit.
Optimized R-410A design
The industry benchmark is the world’s first R-410A operated variable refrigerant volume (VRV) system and represents
a   considerable advance in efficiency over competitive systems.
Flexible design
Continuous operation 0ºF DB (-5ºF WB) - 64ºF DB (60ºF WB) in heating mode and 23ºF DB - 110ºF DB in cooling mode.
Long refrigerant lines, up to 1,000 feet of pipe (492 feet max. Linear liquid piping length), 165 height difference.
Modular units can be interconnected to make combinations of up to 16 Ton systems.
8 Ton condenser fan can be ducted with 0.25 ESP for indoor installation.
Ability to interface with external heating system..
Indoor units
A choice of ducted fan coils, 4-way cassette, ceiling suspended, wall mounted or floor console.
Capacities from 1/2 (7MBH) to 4 (48 MBH) Ton.
Simple wiring
Daisy chain control wiring, 2 wire, non-shielded, non-polarized cable for simple installation.
Energy efficiency
Energy Star rated with part load efficiency better than most conventional split systems.
Superior heating capability with operation as low as -5ºFWB (0ºFDB).
Outside air
Outside air capability with ducted fan coils and ductless cassette units.
Space saving
Slim outdoor unit (just 15 5/8") and flexible indoor unit options offer quick and easy installation.
Advanced diagnostics
The advanced, self-diagnostic, auto-check function will detect a malfunction and immediately display the type and
location so it can be resolved quickly and effectively.
LCD remote control
Controls up to 16 zones and provides a host of operational functions.
Quiet
Indoor and outdoor units offer quiet operation. FXFQ indoor unit has a sound pressure level as low as 28dB(A).
DAIKIN AC RXYQ VRV III heat pump outdoor unit
DAIKIN AC FXLQ floor console mounted
DAIKIN AC FXSQ concealed ceiling
DAIKIN AC FXHQ ductless ceiling suspended cassette
DAIKIN AC FXAQ VRV wall mounted
DAIKIN AC FXNQ concealed floor console indoor unit

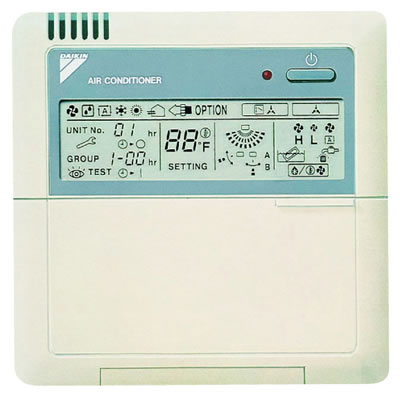

DAIKIN AC BRC1D71 wired remote control
DAIKIN AC 2MXS two zone heat pump air conditioner
DAIKIN AC BRC wireless remote control
DAIKIN AC BRC2A71 simlified wired remote control
DAIKIN AC BRC7C wireless remote control
DAIKIN AC FXDQ slim duct built-in concealed ceiling
DAIKIN AC FXFQ 4 way cassette
DAIKIN AC RXYMQ VRV-S heat pump condenser

Daikin Ductless systems open up opportunities in small and large space

With Daikin, single split, Multi split or VRV centralized systems, we create the perfect heating & cooling solution for any of your
construction needs, maximize comfort for every home, business or large commercial space and creating unique personalized
environment.

Ductless Air conditioner design flexibility

Ductless Air conditioners inverter technology smartly control entire system operation, design flexibility allows to choose the right
style and capacity indoor unit for your environment, inelegant inverter compressor increase performance when needed and reduce
energy consumption when desired temperature reached, individually temperature control in every room,  additional energy saving
by shooting off the indoor unit in non-occupied area.
When a little or no ductwork required, it takes less time and effort to install, Saving time and money on every level.

VRV III commercial centralized system

Daikin is using the latest and most revolutionary technologies in the development of the VRV III, Heat pump and Heat recovery
systems for large residential and commercial buildings. The system offers greater energy savings, easier installation, longer
actual and total piping length,
and more.
DAIKIN AC Product Lineup
Get adobe reader click here for download
Daikin  AC full  product lineup - ductless, ducted, air to air and water cooled
Daikin AC Lineup
catalog
Single zone heating
and cooling only
Multi Zone  Heating
& cooling
Daikin Multi-split air conditioners ductless & ducted mini split systems
Quaternity Single
zone Heat Pump
Daikin Quaternity ductless single split system / heat pump
VRV-S Multi split up
to eight zone
VRV III Heat pump &
Heat recovery
VRV III-S Heat
pump  up to eight
zone
Daikin VRV S multi split systems heat pump
Daikin AC VRV III central ductless & ducted commercial air to air split systems
Daikin VRV -WII Ductless & ducted commercial water cooled systems pdf
Daikin  AC full  product lineup pdf
Split air conditioners - Single split (RXS) high efficiency, (RX) standard efficiency, Multi split (2MXS)
two zone and (4MXS) 4 zone
Quaternity: first inverter split system heat pump system capable of dehumidifying room air and air
cleaning functions. Size: 9,000, 12,000, 15,000 BTU. 21 and 22 SEER
VRV-S (RXWMQ)  heat pump - for light commercial and residential, Two outdoor units 36,000 &
48,000 BTU create 46 different indoor units options.
VRV III (RXYQ)  heat pump - Enable either heating or cooling from one system, up to 41 indoor unit
connects to a single system, heating & cooling capacity:
6, 8, 10, 12, 14, 16, 18 and 20  ton, 1024 indoor units can operate on a single wiring systems.
VRV III (REYQ) heat recovery -  One system provides simultaneous cooling or heating, The inverter
heat recovery function is achieved by diverting exhaust heat from indoor units in cooling mode to
areas requiring heating, and heating, up to 41 indoor unit connects to single system, heating &
cooling capacity: 6, 8, 10, 12, 14, 16, 18  and 20 ton, 1024 indoor units can operate on a single
wiring systems.
VRV II (RWEYQ) water cooled system - available up to 21 ton in 7 combinations, Up to 32 indoor
units can be connected with a choice of 10 different styles and 46 models ranging from 0.5 to 4 ton.
Each indoor unit can provides heating and cooling independently.
Sky air (RZQ) heat pump   Single zone available from 24,000 to 42,000 Btu/h, connects either to
ceiling cassette or ceiling suspended
Inverter Technology

By using inverter technology, Daikin compressors run continuously at a minimum
variable speed that matches the capacity of the current load.
By running the compressor continuously rather than ON/OFF, the room
experiences better dehumidification and the compressor incurs less stress
What is a Heat Pump?

Heat pump technology enables either cooling or heating from one system, a device that acts as an air
conditioner in the summer and as a heater in the winter providing heating and cooling to homes and
businesses in one system. Heat pumps function exactly like an air conditioner in the summer absorbing heat
from your home or business and moving it outdoors. The cost to cool a space with a heat pump is the same
as with air conditioner with the same efficiency rating. In the winter a heat pump basically an air conditioner
with a valve that allows it to operate in reverse, absorbing heat from the outside air and moving it indoors.
VRV How Does It Work?

Daikin Variable Refrigerant Volume (VRV) system changes the way you solve air conditioning problems. At the heart of our
system is a highly intelligent inverter-driven compressor. This advanced technology enables the output of the outdoor unit to
be modulated by the cooling or heating demands of the zone that it controls. Available in heat pump and heat recovery
formats, this advanced system allows for individual control of up to 41 indoor units of varying capacities and types at
connection ratio of 50% - 130% (8 and 16 Ton) compared to outdoor unit capacity. The heat recovery function is achieved by
diverting exhausted heat from indoor units in cooling mode to areas requiring heating, and uses a Branch Selector (BS) unit
to switch the indoor units from cooling to heating mode. The entire pipe network is also facilitated by the use of the Refnet
tubing connectors, which reduces the installation time.
The VRV system keeps running costs at an absolute minimum by controlling each zone individually and being able to shut
down completely in unoccupied areas.
Pacific HVAC Air conditioner is an Authorized Daikin Heating & Air conditioning contractor
for Home, Business, Residential & commercial, highly knowledgeable, experienced and
specializes with all Daikin HVAC Heating & Air conditioning systems:  Ductless Air
conditioner heat pump (Mini Split), Heat recovery (VRV III) and water cooled VRV-WII),
provide outstanding of HVAC service, exceptional professional Installation, affordable
maintenance program, expert AC repair

Daikin HVAC systems offer a wide range of heating and cooling solutions that are cost
efficient, quite, reliable and esthetically designed. They provide a smart alternative to both
window AC and conventional Central AC, and are available in a variety of configurations to
suit different heating and cooling solutions
tax credit
daikin hvac
Daikin indoor and outdoor units
Daikin indoor and outdoor units
Daikin indoor and outdoor units
Daikin ac images
Daikin VRV III-S Ductless & ducted split systems up to eight zone
VRV -WII Multi zone
Water cooled systems
Daikin Altherma Heatning cooling and domestic hot water
Altherma cooling &
Domestic hot water
daikin line up
Multi zone split systems heating and cooling pdf
Daikin Quaternity Single zone heat pump pdf
Daikin product lineup 2011
Residential and commercial Ductless
& ducted Air conditioners systems
Daikin SkyAir light commercial ductless split systems
SkyAir  Single zone
light commercial
Daikin Sky Air light commercial split systems pdf
Daikin Altherma Heatning cooling and domestic hot water pdf
Daikin VRV-S ductless & ducted split systems up to eight zone pdf
Daikin VRV III-S ductless & ducted split systems up to eight zone pdf
Daikin VRV -WII Ductless & ducted commercial water cooled systems
Daikin VRV -III Commercial central Heating and cooling split systems pdf
Daikin Line up
daikin inverter
Daikin product lineup
daikin air conditioners
daikin air conditioners
daikin line up
daikin ductless air conditioners
Indoor, Outdoor and remote control units
Get adobe reader click here for download
daikin VRV III logo
Daikin skyair logo
daikin VRV W-II logo
Daikin VRV logo
daikin hvac
Ductless split system  & VRV - Features and benefits
  • High energy efficient and use of R-410A refrigerant
  • Dehumidification function control (Quaternity systems)
  • Indoor air quality: flash streamer air purifier (Quaternity systems)
  • Deliver prices temperature
  • Quite operation indoor and outdoor
  • Smooth air flow
  • Intelligent eye movement sensor adjust temperature (on FTX and CTX models only)
  • Variety of wired and wireless remote control
daikin ductless air conditioners
  • The system operates at the required capacity, delivering the amount of cooling or
    heating to maintain the desired comfort condition.
  • Start-up time is reduced by one-third (compared to normal on/off units).
  • Avoid cycling operation of the compressor, thus reduce costly current (amp) peaks.
  • System minimizes temperature fluctuations.
  • Reduce the energy consumptions by one-third (compared to on/off normal units).
Advantage of inverter Technology
DAIKIN VRV Features & Benefits
DAIKIN VRV Features & Benefits
daikin split air conditioners
Daikin inverter
Download Adobe reader
VRV Features benefits
navigation
navigation
navigation
Daikin RZQ24PVJU9 central AC inverter pdf
New Daikin  Central
AC  RZQ24PVJU9
Daikin Sky Air light commercial split systems pdf
Daikin 2MXS18GVJU 20 SEER dual zone heat pump
Daikin 2MXS18GVJU
Dual zone combination
Daikin Sky Air light commercial split systems pdf
HOME
www.pacificairconditioner.com
EPA certified contractor
Pacific hvac air conditioner logo
Pacific HVAC Air Conditioner
Tel: 201-266-0049
Email :service@pacificairconditioner.com
DAIKIN AC
Authorized Daik Dealer
Ari performance certified
u.s green building
Commercial HVAC
New installation
Maintenance
AC Repair
Residential & Light commercial
HVAC
Mini  split cooling only
Mini split Heat pump
Multi split Heat pump
Single zone heating and cooling pdf
Single zone heating and cooling pdf
Multi zone split systems heating and cooling pdf
VRV III-S
Daikin VRV III-S ductless & ducted split systems up to eight zone pdf
Sky Air Heat pump
VRV III Heat pump
VRV III Heat recovery
VRV W-II Water cooled
Daikin Sky Air light commercial split systems pdf
Daikin VRV -III Commercial central Heating and cooling split systems pdf
Daikin VRV -III Commercial central Heating and cooling split systems pdf
Daikin VRV -WII Ductless & ducted commercial water cooled systems
VRV III RXYQ
VRV III-S
FXFQ CASSETTE

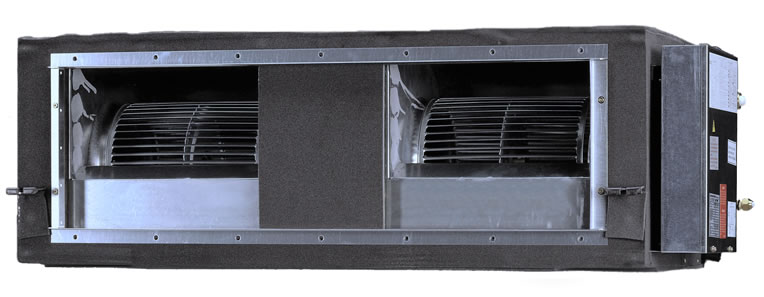

FXMQ Concealed
FXNQ Floor unit
FXLQ Floor unit
FXMQ PVJU Concealed
FXHQ Ceiling suspended
FXAQ Wall mounted
FXDQ Slim concealed unit
2MXS18GVJU
BRC1D71
DST301BA61 Timer

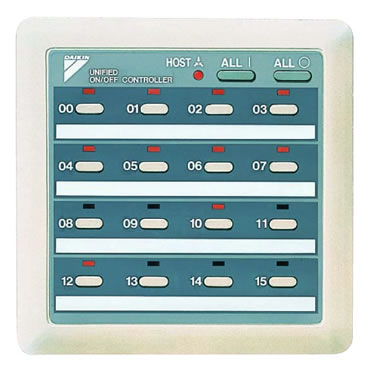

DCS301C71
ARC433A51
BRC2A71
BRC4C
Daikin central AC inverter heat pump 18 SEER
Tax Credit
PDF file
Daikin AC
DAIKIN HVAC - Heating & Air conditioning contractor Ductless & VRV
Daikin Sky Air light commercial split systems pdf
Daikin Inverter Central AC Heat pump
18 SEER
Daikin Sky Air light commercial split systems pdf
Daikin HVAC SERVICE | Heating & Air conditioning | Ductless | Ducted | Heat Pump | Heat Recovery |
Water cooled heat pump | Installation | AC repair | Maintenance | Radiant Heating |
Service Area | NY | NYC | NJ
2011 Daikin $300
PDF file
daikin single zone heating and cooling
Single zone heating and cooling pdf
Video of Daikin VRV indoor units
VIDEO
Daikin VRV indoor units
Daikin 4MX eight zones system
                                 VIDEO
    Daikin 4MX Heat pump installation
Daikin Line up
Daikin VRV III S Video installation in NYC
        VIDEO
Daikin VRV III S Video installation in NYC
Daikin Line up
Daikin HVAC Service
daikin split air conditioners
daikin split air conditioners
Daikin Line up
Daikin product line up 2011 Mini-split,VRV
Daikin Line up
Rebel - New Daikin McQuay Rooftop
Heat pump system world class energy
saving and unbeatable part-Load
efficiencies

The New Dakin McQuay commercial rooftop system
offers unprecedented energy saving, using high
quality McQuay equipment combine with advanced
Daikin technologies.

3-15 Ton heat pump system with hybrid (gas,
electric, hot water) heat options, ultra quite
condenser fans, and inverter scroll compressor that
minimizes on/off cycling.
Rebel rooftop system ideal for nay low rise buildings
such as schools, universities, MD center, restaurants,
retail stores and more

Rebel rooftop system new technologies deliver
unmatched energy efficient and cost saving,
providing payback to owners in as little as two years.
SECIFICATION
OVERVIEW
